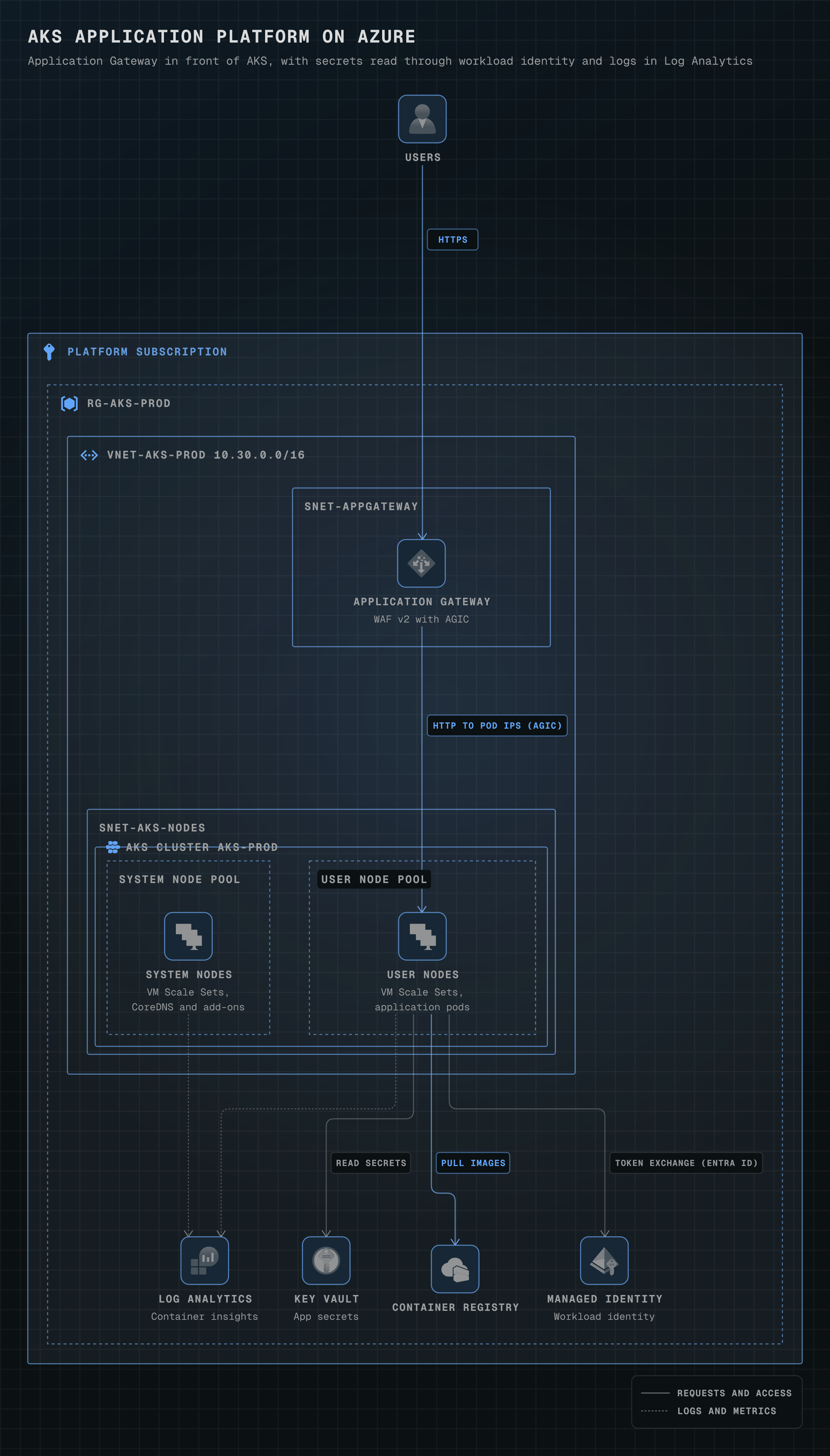

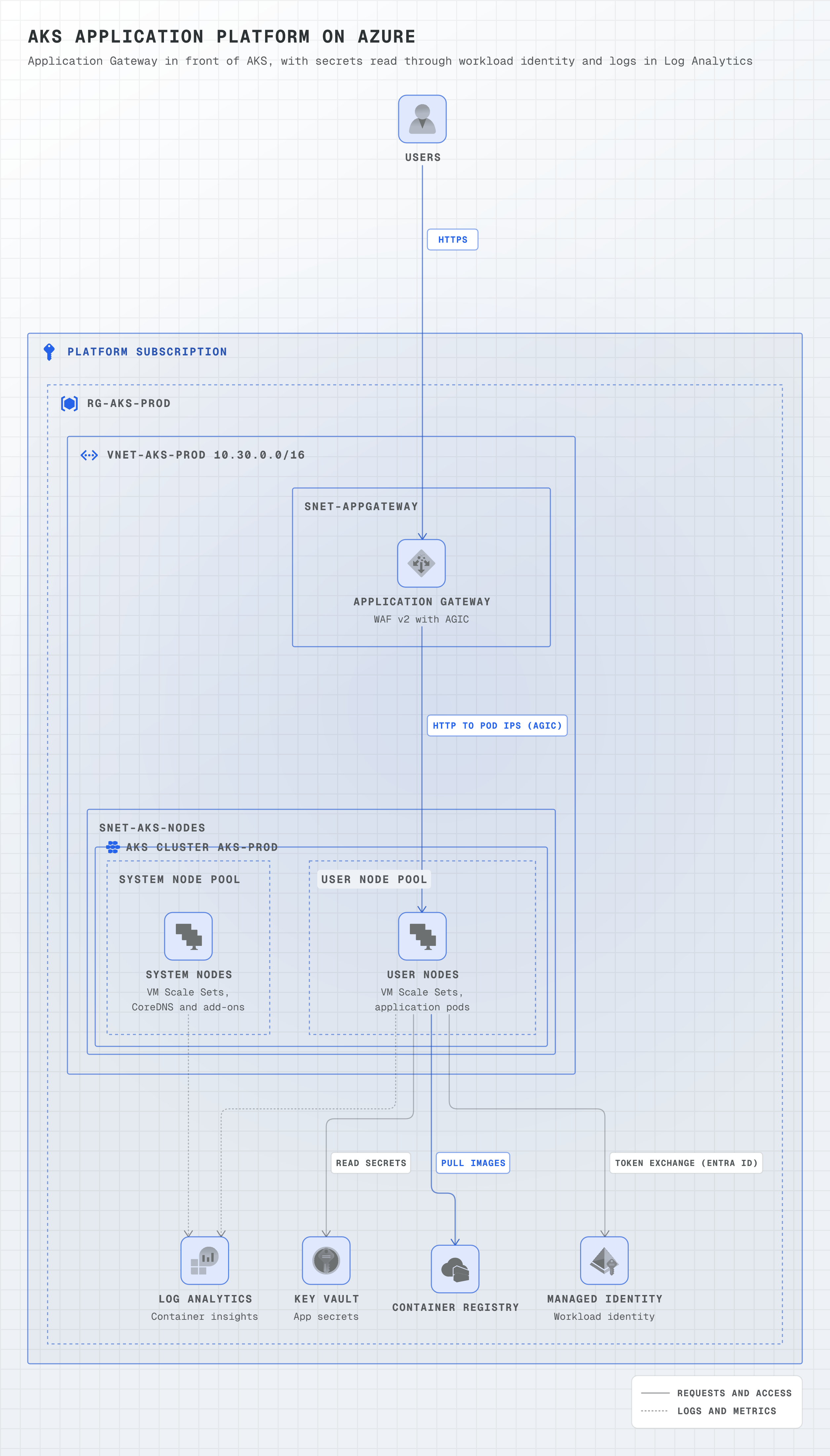

AKS application platform on Azure

Application Gateway in front of an AKS cluster with system and user node pools, Container Registry, workload identity (the pods exchange their token with Microsoft Entra ID, then read Key Vault), and Log Analytics.

azure8 nodes8 groups6 edges
Open full size
AKS application platform on AzureAKS application platform on AzureAKS application platform on AzureAKS application platform on Azure
azure-aks-platform.yamlOn GitHub
# yaml-language-server: $schema=../references/diagram.schema.json
title: AKS application platform on Azure
subtitle: Application Gateway in front of AKS, with secrets read through workload identity and logs in Log Analytics
direction: down
arrowhead: filled
layout: { merge: false }

legend:
  solid: Requests and access
  dotted: Logs and metrics

groups:
  sub: { type: azure:subscription, label: Platform subscription }
  rg: { type: azure:resource-group, label: rg-aks-prod, in: sub }
  vnet: { type: azure:vnet, label: vnet-aks-prod 10.30.0.0/16, in: rg }
  snet-agw: { type: azure:subnet, label: snet-appgateway, in: vnet }
  snet-aks: { type: azure:subnet, label: snet-aks-nodes, in: vnet }
  system-pool: { type: azure:node-pool, label: System node pool, in: snet-aks }
  user-pool: { type: azure:node-pool, label: User node pool, in: snet-aks }
  # Only the node pools (VM Scale Sets) live in the subnet; the AKS control plane is managed by Azure.
  # The cluster is an overlay around the pools, a plain box with the AKS icon in its header.
  cluster: { type: box, label: AKS cluster aks-prod, icon: azure:aks, around: [system-pool, user-pool] }

nodes:
  users: { icon: azure:users, label: Users }
  agw: { icon: azure:appgw, label: Application Gateway, note: WAF v2 with AGIC, in: snet-agw }
  system: { icon: azure:vm-scale-sets, label: System nodes, note: "VM Scale Sets, CoreDNS and add-ons", in: system-pool }
  apps: { icon: azure:vm-scale-sets, label: User nodes, note: "VM Scale Sets, application pods", in: user-pool }
  acr: { icon: azure:acr, label: Container Registry, in: rg }
  identity: { icon: azure:managed-identity, label: Managed identity, note: Workload identity, in: rg }
  kv: { icon: azure:key-vault, label: Key Vault, note: App secrets, in: rg }
  logs: { icon: azure:log-analytics, label: Log Analytics, note: Container insights, in: rg }

edges:
  - users -> agw: HTTPS
  - agw -> apps: HTTP to pod IPs (AGIC)
  - apps -> acr: pull images
  - apps -> identity: token exchange (Entra ID)
  - apps -> kv: read secrets
  - system, apps ..> logs

Start from this one

Copies the spec to diagram.yaml, then renders every format.

$ orrery init azure-aks-platform$ orrery render diagram.yaml -f all --theme both
