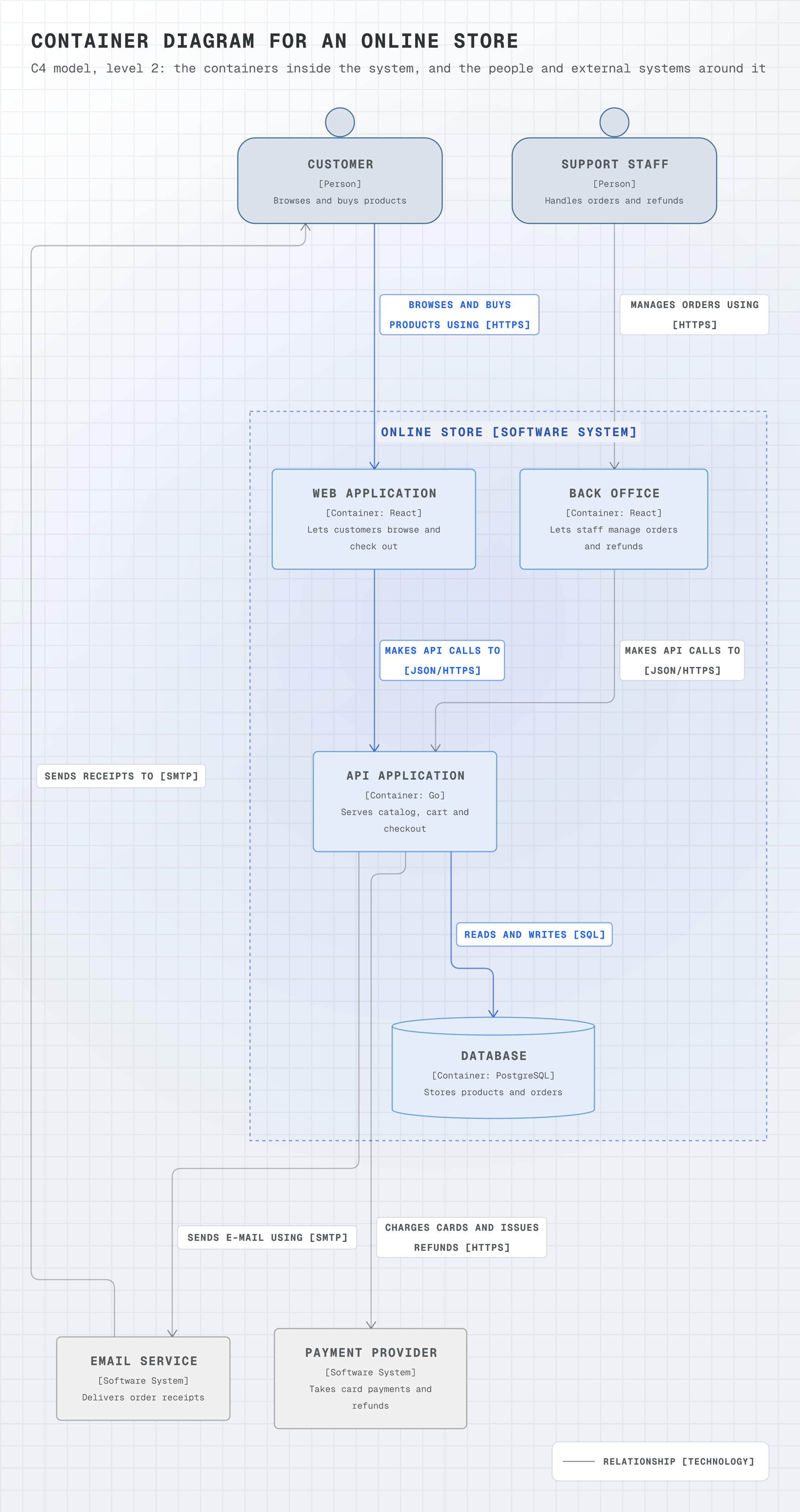

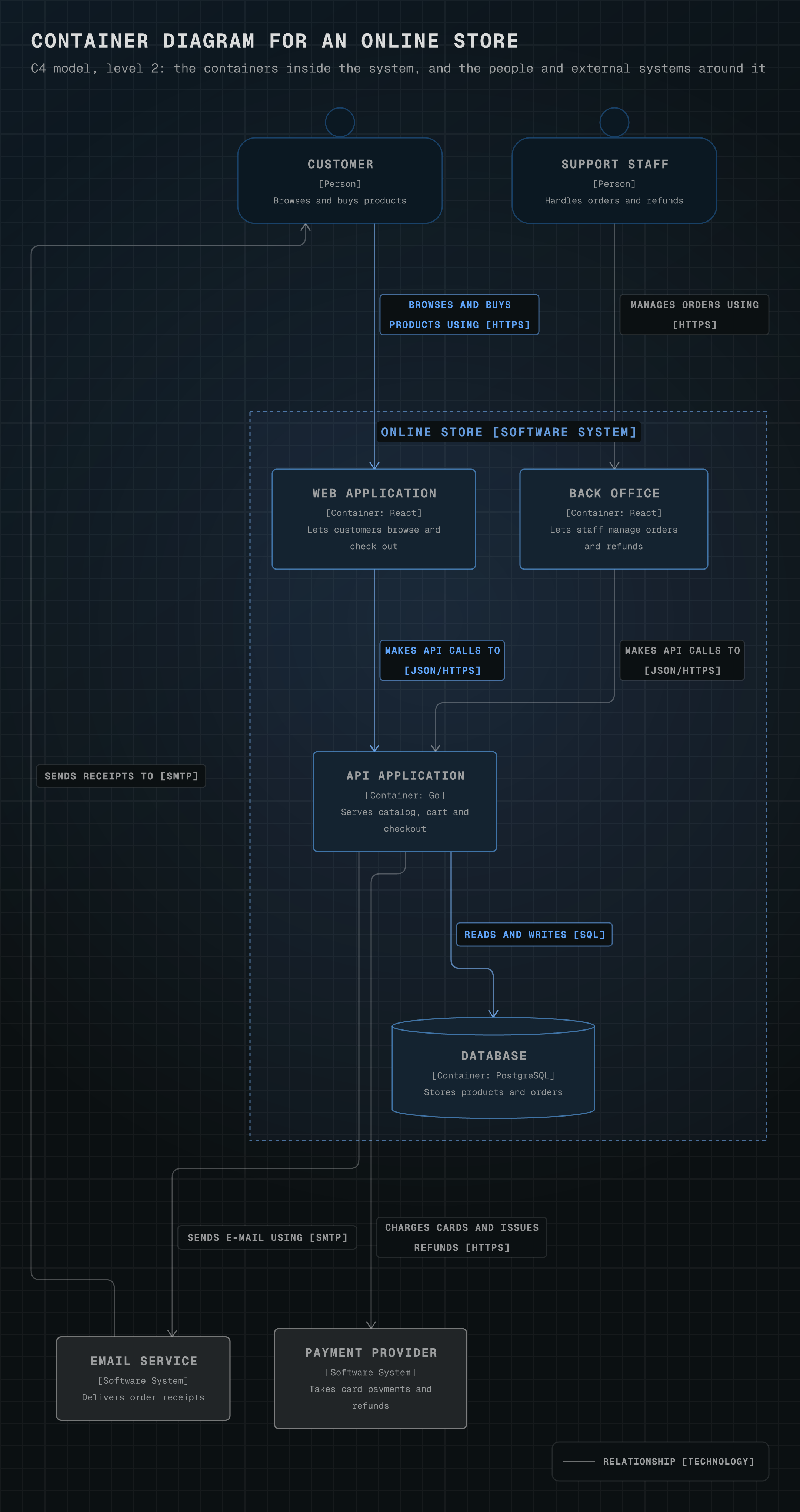

Container diagram for an online store

# yaml-language-server: $schema=../references/diagram.schema.json
title: Container diagram for an online store
subtitle: "C4 model, level 2: the containers inside the system, and the people and external systems around it"
direction: down
# One port per edge, so the web and back office calls into the API each keep their own arrowhead.
layout: { spacing: normal, merge: false }

legend:
  solid: "Relationship [technology]"

groups:
  store: { type: c4:boundary, label: "Online store [Software System]" }

# C4-PlantUML colors: person #08427b, container #438dd5, external system #999999.
nodes:
  customer: { shape: person, label: Customer, note: "[Person]\nBrowses and buys products", color: "#08427b" }
  staff: { shape: person, label: Support staff, note: "[Person]\nHandles orders and refunds", color: "#08427b" }
  web: { shape: box, label: Web application, note: "[Container: React]\nLets customers browse and check out", color: "#438dd5", in: store }
  admin: { shape: box, label: Back office, note: "[Container: React]\nLets staff manage orders and refunds", color: "#438dd5", in: store }
  api: { shape: box, label: API application, note: "[Container: Go]\nServes catalog, cart and checkout", color: "#438dd5", in: store }
  db: { shape: cylinder, label: Database, note: "[Container: PostgreSQL]\nStores products and orders", color: "#438dd5", in: store }
  payments: { shape: box, label: Payment provider, note: "[Software System]\nTakes card payments and refunds", color: "#999999" }
  email: { shape: box, label: Email service, note: "[Software System]\nDelivers order receipts", color: "#999999" }

edges:
  - customer -> web: Browses and buys products using [HTTPS]
  - staff -> admin: Manages orders using [HTTPS]
  - web, admin -> api: "Makes API calls to [JSON/HTTPS]"
  - api -> db: Reads and writes [SQL]
  - api -> payments: Charges cards and issues refunds [HTTPS]
  - api -> email: Sends e-mail using [SMTP]
  # Written in layout order (the customer above the email service) with the arrow flipped, so the people stay on top.
  - { from: customer, to: email, arrow: start, label: "Sends receipts to [SMTP]" }
