GitOps delivery with Argo CD

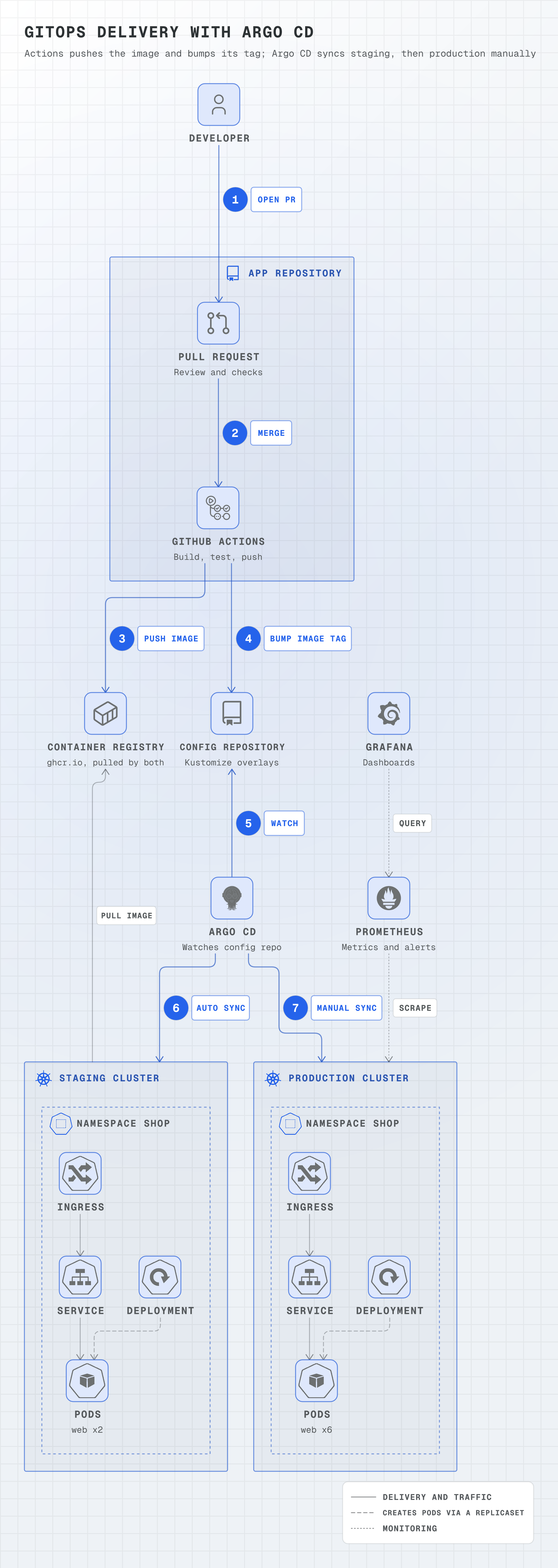

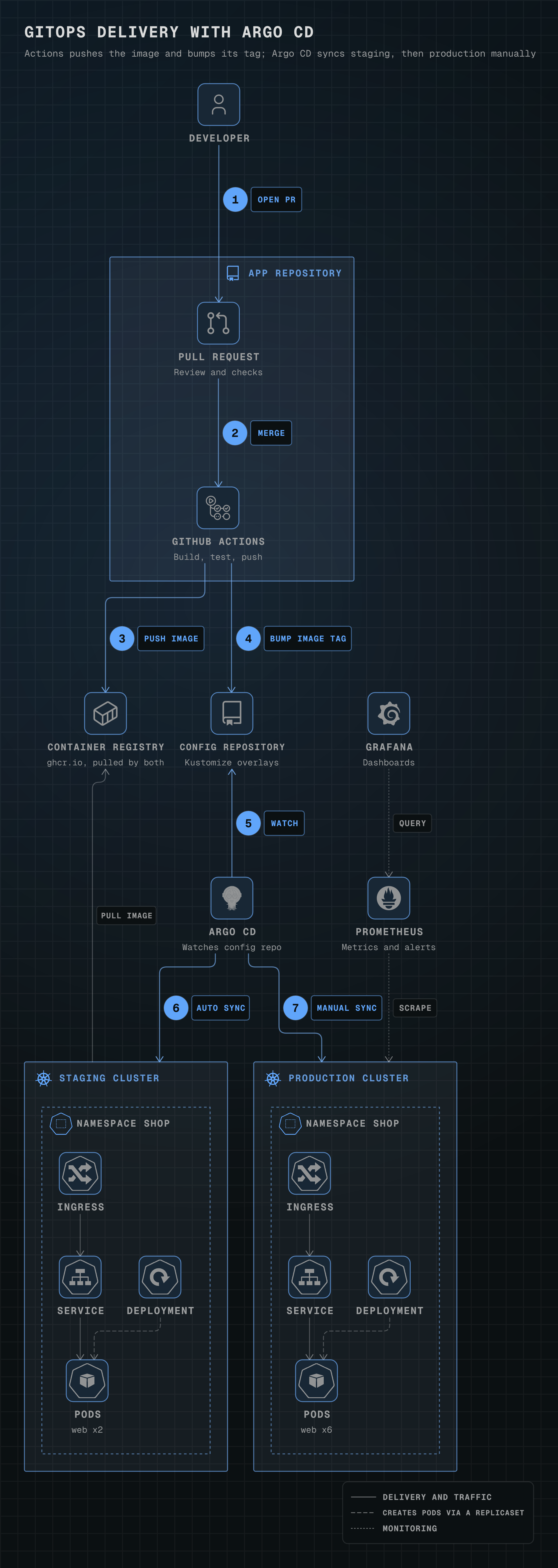

GitOps with Argo CD: a pull request runs GitHub Actions, which pushes the image to ghcr.io and bumps its tag in the config repository; Argo CD syncs the staging cluster automatically and production on a manual sync, with Prometheus and Grafana monitoring production.

githubk8slogos16 nodes5 groups14 edges
Open full size
GitOps on Kubernetes: GitHub Actions, ghcr.io, a config repository and Argo CD syncing staging and production clustersGitOps on Kubernetes: GitHub Actions, ghcr.io, a config repository and Argo CD syncing staging and production clustersGitOps on Kubernetes: GitHub Actions, ghcr.io, a config repository and Argo CD syncing staging and production clustersGitOps on Kubernetes: GitHub Actions, ghcr.io, a config repository and Argo CD syncing staging and production clusters
gitops-kubernetes.yamlOn GitHub
# yaml-language-server: $schema=../references/diagram.schema.json
title: GitOps delivery with Argo CD
subtitle: Actions pushes the image and bumps its tag; Argo CD syncs staging, then production manually
direction: down
# Top to bottom so the 880px README column shows it at full size (orrery review). One port per edge:
# the sync, pull and scrape arrows end on cluster borders and must not share a point.
layout: { layering: simplex, spacing: compact, merge: false }

legend:
  solid: Delivery and traffic
  dashed: Creates pods via a ReplicaSet
  dotted: Monitoring

groups:
  app-repo: { type: box, label: App repository, icon: github:repo }
  staging: { type: k8s:cluster, label: Staging cluster }
  staging-ns: { type: k8s:namespace, label: Namespace shop, in: staging }
  prod: { type: k8s:cluster, label: Production cluster }
  prod-ns: { type: k8s:namespace, label: Namespace shop, in: prod }

nodes:
  dev: { icon: generic:user, label: Developer }
  pr: { icon: github:git-pull-request, label: Pull request, note: Review and checks, in: app-repo }
  actions: { icon: logos:github-actions, label: GitHub Actions, note: "Build, test, push", in: app-repo }
  registry: { icon: github:container, label: Container registry, note: "ghcr.io, pulled by both" }
  config: { icon: github:repo, label: Config repository, note: Kustomize overlays }
  argocd: { icon: logos:argo-icon, label: Argo CD, note: Watches config repo }
  stg-ing: { icon: k8s:ing, label: Ingress, in: staging-ns }
  stg-svc: { icon: k8s:svc, label: Service, in: staging-ns }
  stg-deploy: { icon: k8s:deploy, label: Deployment, in: staging-ns }
  stg-pods: { icon: k8s:pod, label: Pods, note: web x2, in: staging-ns }
  prod-ing: { icon: k8s:ing, label: Ingress, in: prod-ns }
  prod-svc: { icon: k8s:svc, label: Service, in: prod-ns }
  prod-deploy: { icon: k8s:deploy, label: Deployment, in: prod-ns }
  prod-pods: { icon: k8s:pod, label: Pods, note: web x6, in: prod-ns }
  grafana: { icon: logos:grafana, label: Grafana, note: Dashboards }
  prometheus: { icon: logos:prometheus, label: Prometheus, note: Metrics and alerts }

edges:
  - dev -> pr: { label: open PR, step: 1 }
  - pr -> actions: { label: merge, step: 2 }
  - actions -> registry: { label: push image, step: 3 }
  - actions -> config: { label: bump image tag, step: 4 }
  # Laid out config -> Argo CD so Argo CD sits right of the repository; the arrowhead stays on the repository.
  - { from: config, to: argocd, arrow: start, label: watch, step: 5 }
  - argocd -> staging: { label: auto sync, step: 6 }
  - argocd -> prod: { label: manual sync, step: 7 }
  # Traffic is solid, the Deployment's pods are dashed (the Kubernetes deck draws "creates" links dashed), monitoring is dotted.
  - stg-ing -> stg-svc -> stg-pods
  - stg-deploy --> stg-pods
  - prod-ing -> prod-svc -> prod-pods
  - prod-deploy --> prod-pods
  - grafana ..> prometheus: query
  - prometheus ..> prod: scrape
  # Both clusters pull from the registry; one arrow is drawn so the picture stays readable, and the arrowhead stays on the registry.
  - { from: registry, to: staging, arrow: start, label: pull image }
