Multi-cloud with a shared identity provider

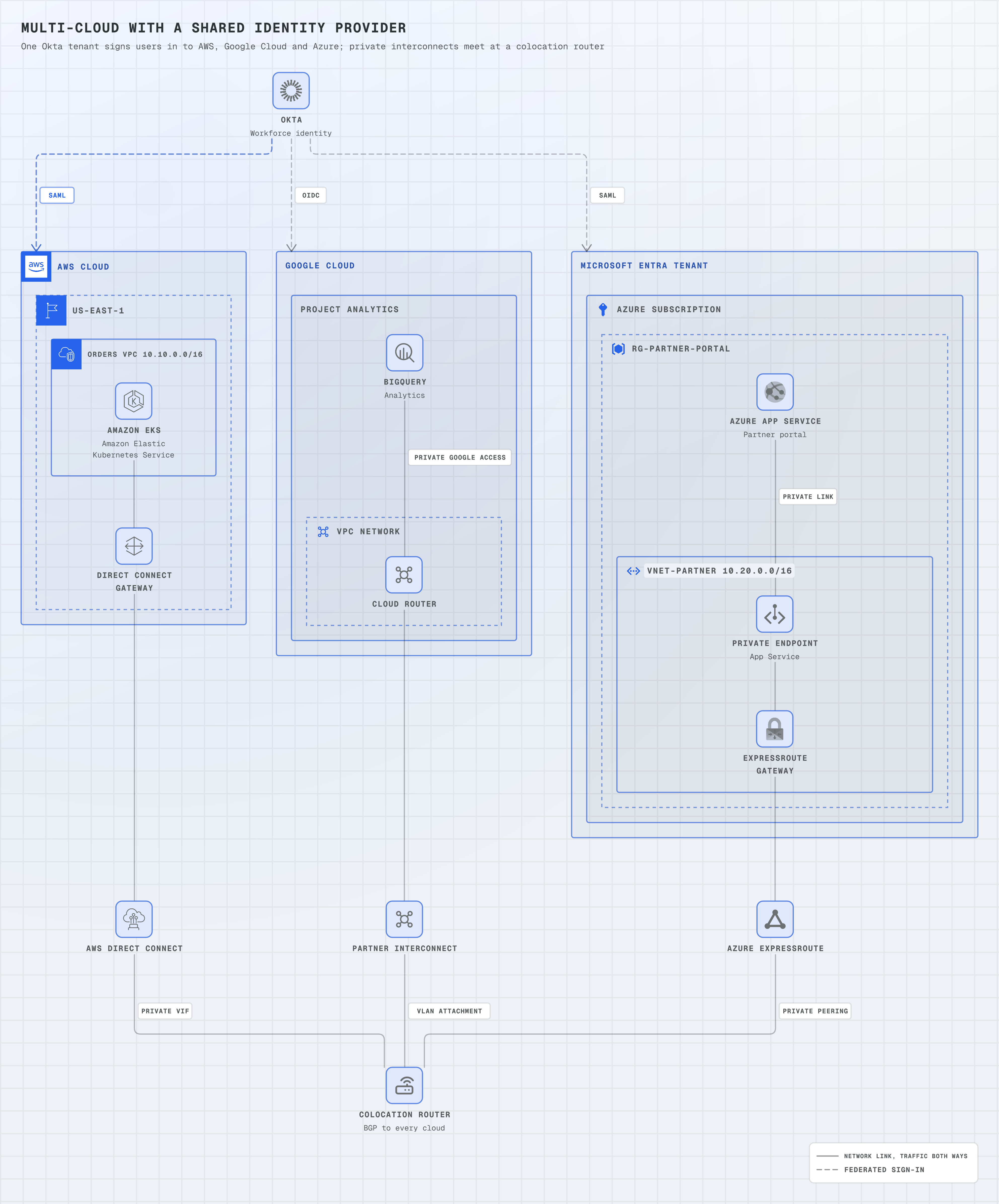

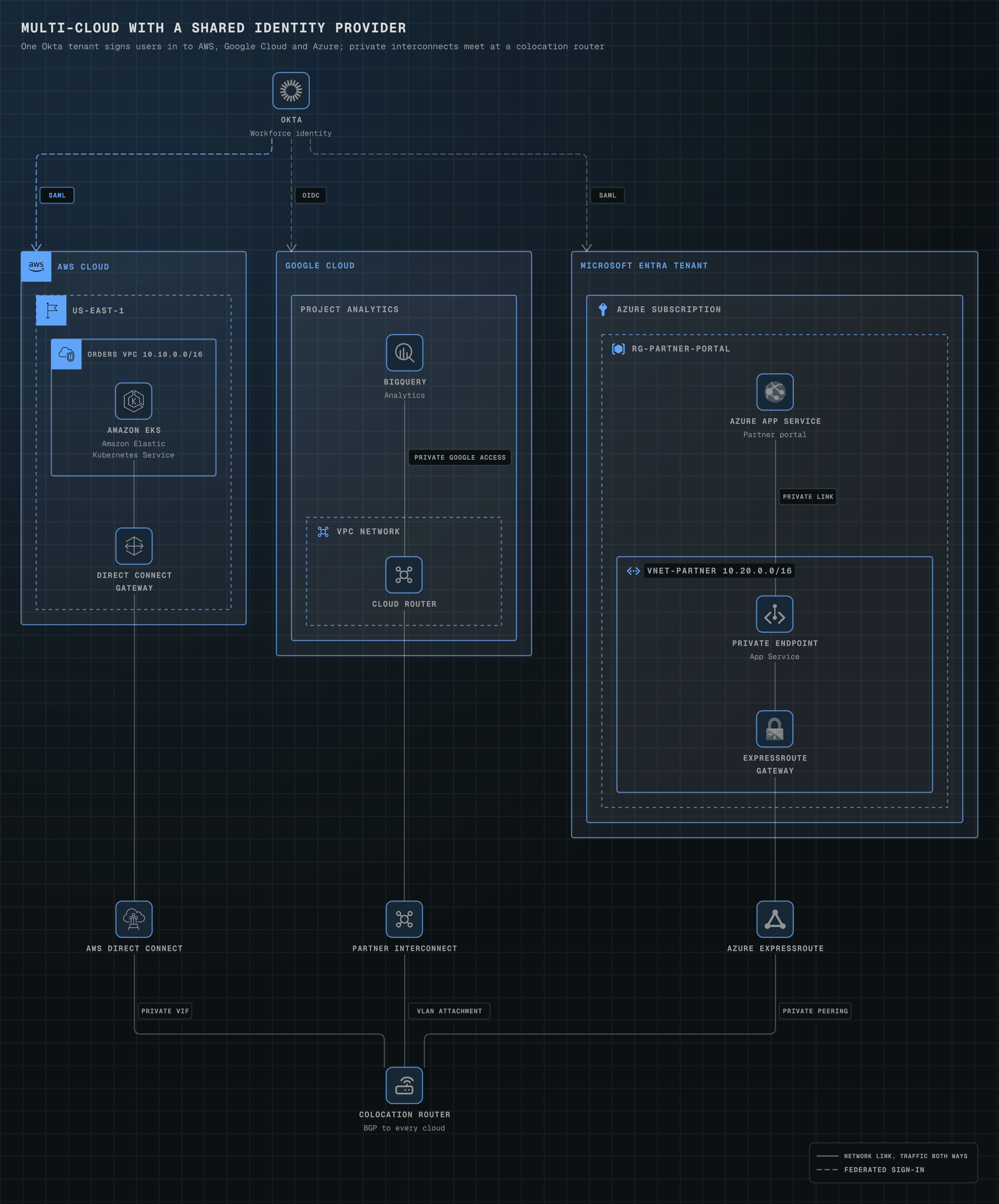

AWS, Google Cloud and Azure in their own vendor frames (the Azure subscription inside its Microsoft Entra tenant), federated to one Okta tenant and joined at a colocation router by Direct Connect, Partner Interconnect and ExpressRoute, each reaching its workload through a gateway or router in a VPC or VNet.

awsazuregcplogos12 nodes10 groups13 edges
Open full size
AWS, Google Cloud and Azure with a shared identity providerAWS, Google Cloud and Azure with a shared identity providerAWS, Google Cloud and Azure with a shared identity providerAWS, Google Cloud and Azure with a shared identity provider
multi-cloud.yamlOn GitHub
# yaml-language-server: $schema=../references/diagram.schema.json
title: Multi-cloud with a shared identity provider
subtitle: One Okta tenant signs users in to AWS, Google Cloud and Azure; private interconnects meet at a colocation router
direction: down
layout: { merge: false }

legend:
  solid: Network link, traffic both ways
  dashed: Federated sign-in

groups:
  aws: { type: aws:cloud }
  aws-region: { type: aws:region, label: us-east-1, in: aws }
  aws-vpc: { type: aws:vpc, label: Orders VPC 10.10.0.0/16, in: aws-region }
  gcloud: { type: gcp:cloud }
  gcp-project: { type: gcp:project, label: Project analytics, in: gcloud }
  gcp-vpc: { type: gcp:vpc, label: VPC network, in: gcp-project }
  tenant: { type: azure:tenant, label: Microsoft Entra tenant }
  azure: { type: azure:subscription, label: Azure subscription, in: tenant }
  azure-rg: { type: azure:resource-group, label: rg-partner-portal, in: azure }
  azure-vnet: { type: azure:vnet, label: vnet-partner 10.20.0.0/16, in: azure-rg }

nodes:
  idp: { icon: logos:okta-icon, label: Okta, note: Workforce identity }
  orders: { icon: aws:eks, label: Amazon EKS, note: Amazon Elastic Kubernetes Service, in: aws-vpc }
  dxgw: { icon: aws:direct-connect-gateway, label: Direct Connect gateway, in: aws-region }
  analytics: { icon: gcp:bigquery, label: BigQuery, note: Analytics, in: gcp-project }
  cloud-router: { icon: gcp:cloud-router, label: Cloud Router, in: gcp-vpc }
  portal: { icon: azure:app-service, label: Azure App Service, note: Partner portal, in: azure-rg }
  pe: { icon: azure:private-endpoint, label: Private endpoint, note: App Service, in: azure-vnet }
  er-gw: { icon: azure:virtual-network-gateways, label: ExpressRoute gateway, in: azure-vnet }
  # The circuits sit outside the cloud frames, as in the hybrid examples.
  dx: { icon: aws:direct-connect, label: AWS Direct Connect }
  interconnect: { icon: gcp:partner-interconnect, label: Partner Interconnect }
  er: { icon: azure:expressroute, label: Azure ExpressRoute }
  router: { icon: generic:router, label: Colocation router, note: BGP to every cloud }

edges:
  # Federation lands on the AWS and Google Cloud frames as a whole and on the Microsoft Entra tenant
  # that holds the Azure subscription, so the edges end at the group borders.
  - idp --> aws: SAML
  - idp --> gcloud: OIDC
  - idp --> tenant: SAML
  - orders -- dxgw
  - dxgw -- dx
  - analytics -- cloud-router: Private Google Access
  - cloud-router -- interconnect
  - portal -- pe: Private Link
  - pe -- er-gw
  - er-gw -- er
  - dx -- router: private VIF
  - interconnect -- router: VLAN attachment
  - er -- router: private peering
